1. Modification purpose

The Mazda 3 high-end model has the same size as the Mazda CX-4 product, and the installation steps are the same. Although it is a niche car model, car owners have a great demand for wireless charging. In order to meet the needs of car owners for wireless charging, our company developed this model in the early stage.

2. Modification method

Replace the original car storage box cushion without affecting the integrity and cleanliness of the original car. It is built according to the original car size.

3. Modification effect

To achieve true wireless charging, there is no line in sight. And realize the mobile phone fast charging experience.

4. Modification steps

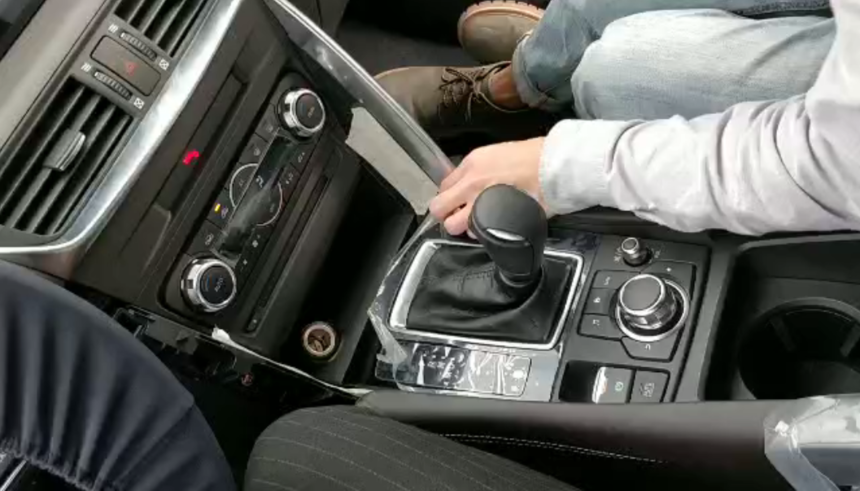

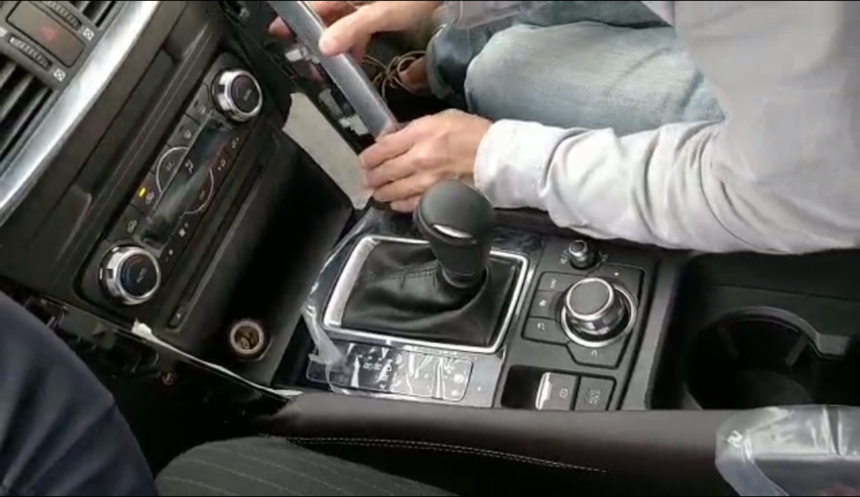

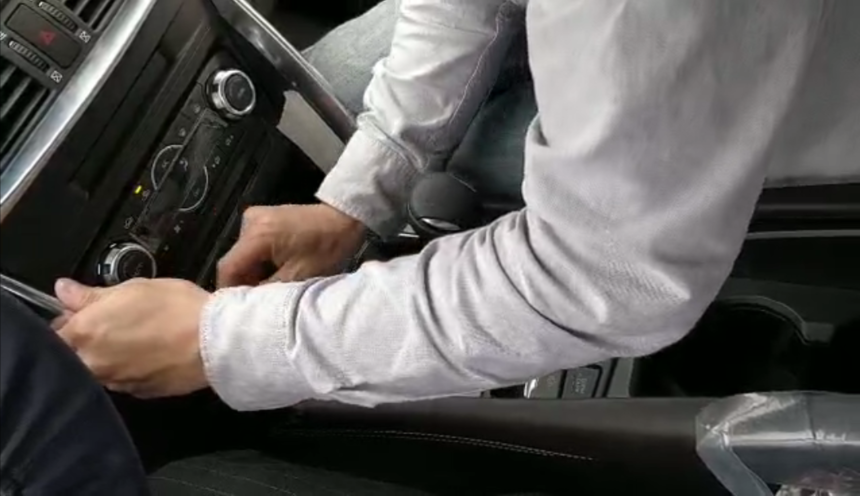

Step 1 Pull up the decorative strips on both sides

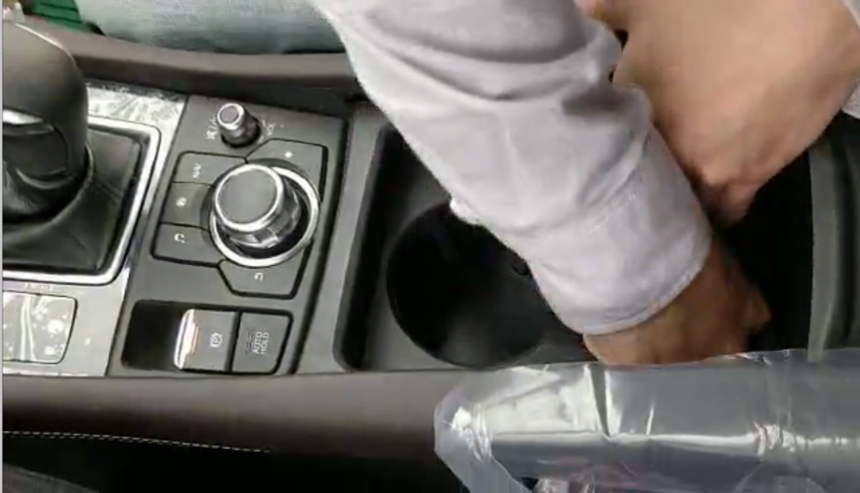

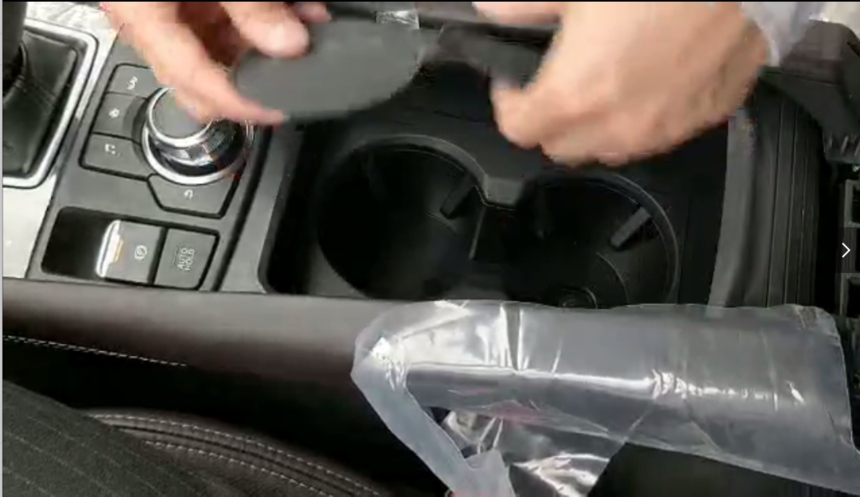

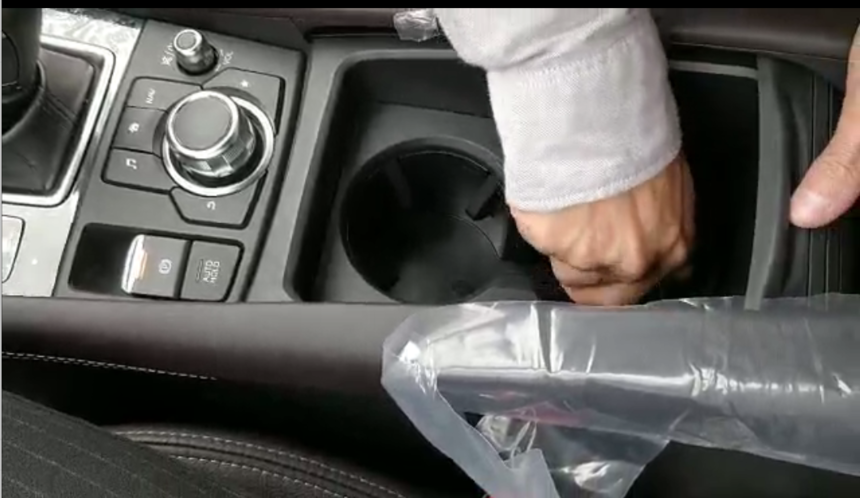

Step 2 Take out the cup pad of the cup holder and unscrew the screw

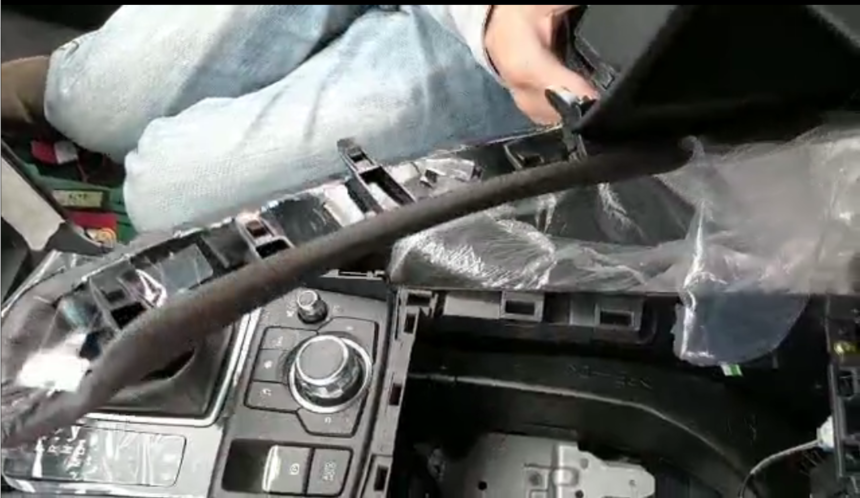

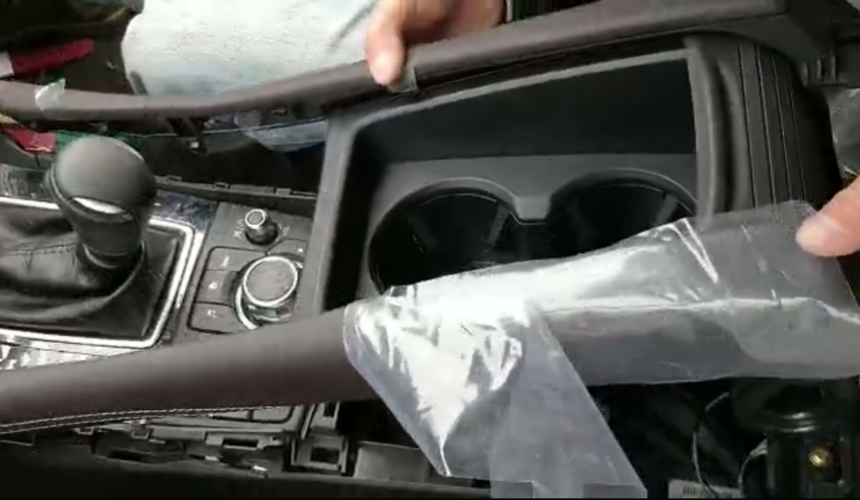

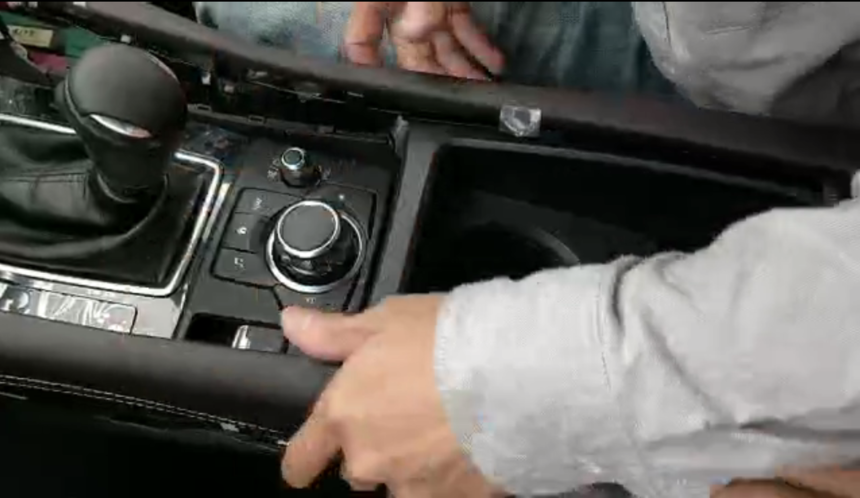

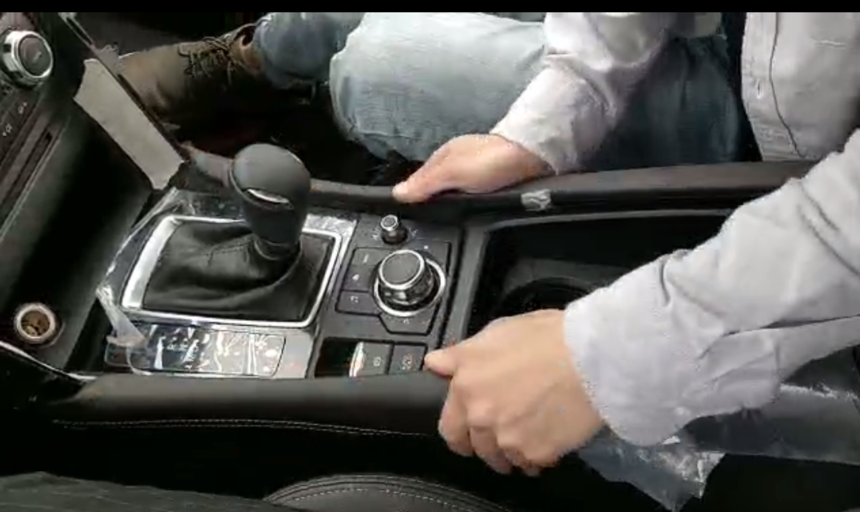

Step 3 Pull up the frame on both sides

Step 4 Dial out the knob operation panel

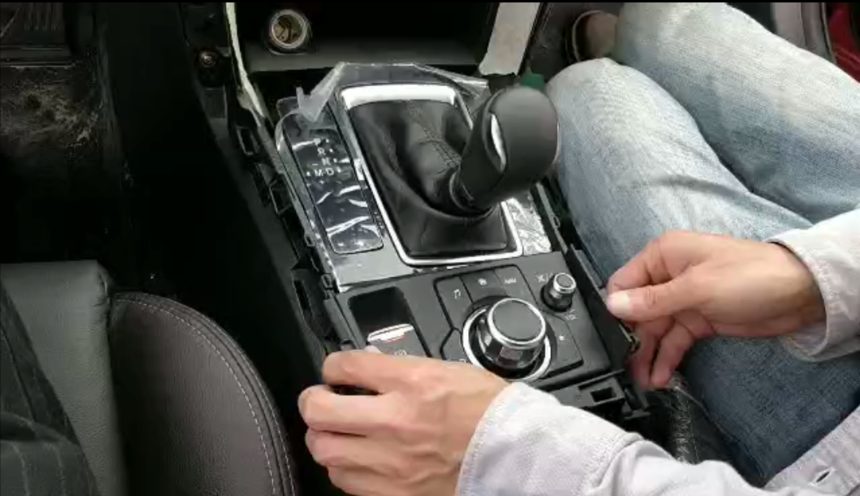

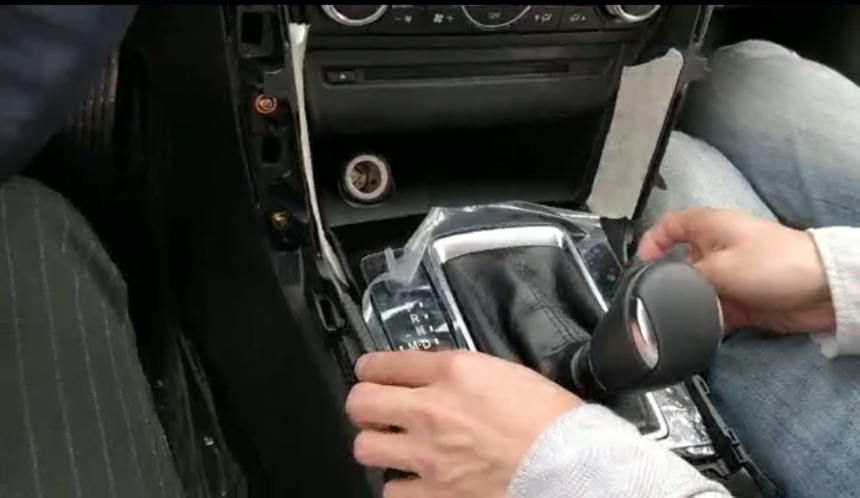

Step 5 Remove the gear panel

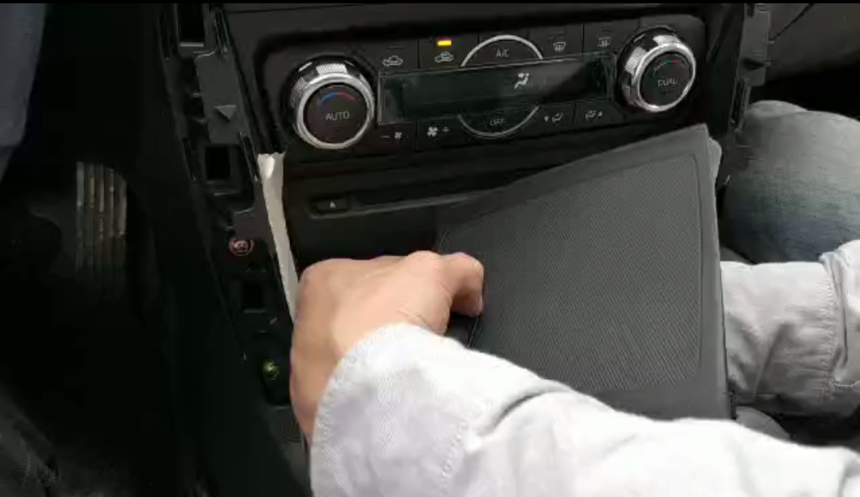

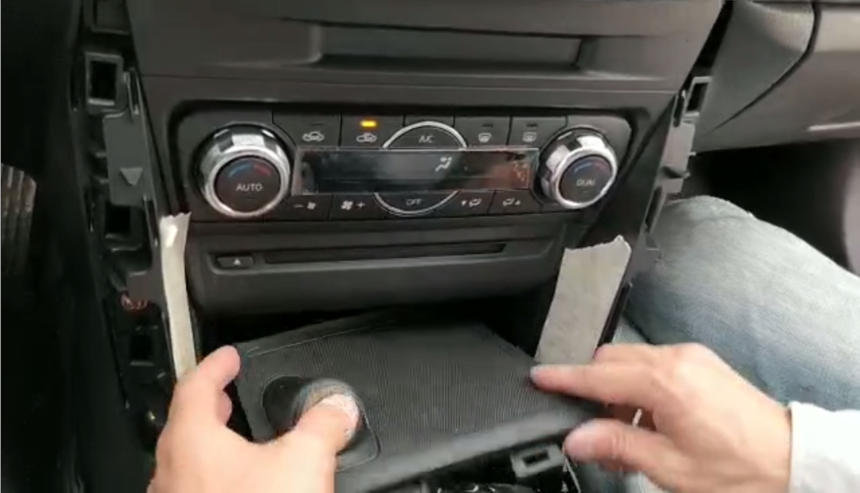

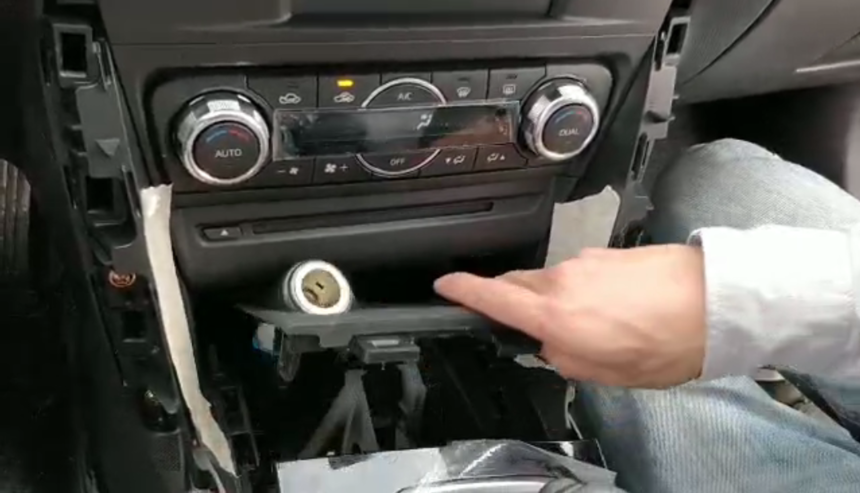

Step 6 Switch the storage panel, replace it with a wireless charging module, and connect the special car wiring harness

Original way reset
